The Smith NE835A Handi-Heet is an acetylene atmospheric-air torch kit designed for jewelry soldering, annealing, brazing, and small ingot melts all without an oxygen tank. Built around the same machined solid-brass Silversmith torch handle (NE-180A) used in the Silversmith kit, the NE835A adds three larger slip-in tips for faster heat delivery on bigger work. The kit connects to a standard B acetylene tank (not included) via a 12-foot twin hose with USA standard B fittings. Recommended fuel pressure is 1314 psi across all included tips, and the flame reaches an operating temperature of approximately 4700F (2630C).
Features
- Acetylene and atmospheric air no oxygen tank required
- Slip-in tips with O-ring seal; rotate to any position without a wrench
- Full-length fluted brass handle for a secure, comfortable grip
- Precise needle valve for fine flame adjustment
- Single-stage regulator delivers steady, consistent fuel pressure
- USA standard B (9/16″18 LH) hose connections
- Torch handle backed by a 12-month warranty (tips excluded)
Specifications
| Fuel | Acetylene (with atmospheric air) |
|---|---|
| Operating Temperature | Approx. 4700F (2630C) |
| Recommended Pressure | 1314 psi (all included tips) |
| Included Tips | 1 Small, 2 Medium, 3 Large |
| Hose Length | 12 ft |
| Torch Body Length | 5-3/8″ (136 mm) |
| Hose Connections | 9/16″18 LH (B fitting, USA standard) |
| Tank Compatibility | B acetylene tank (not included) |
| Warranty | 12 months (torch handle only; tips excluded) |

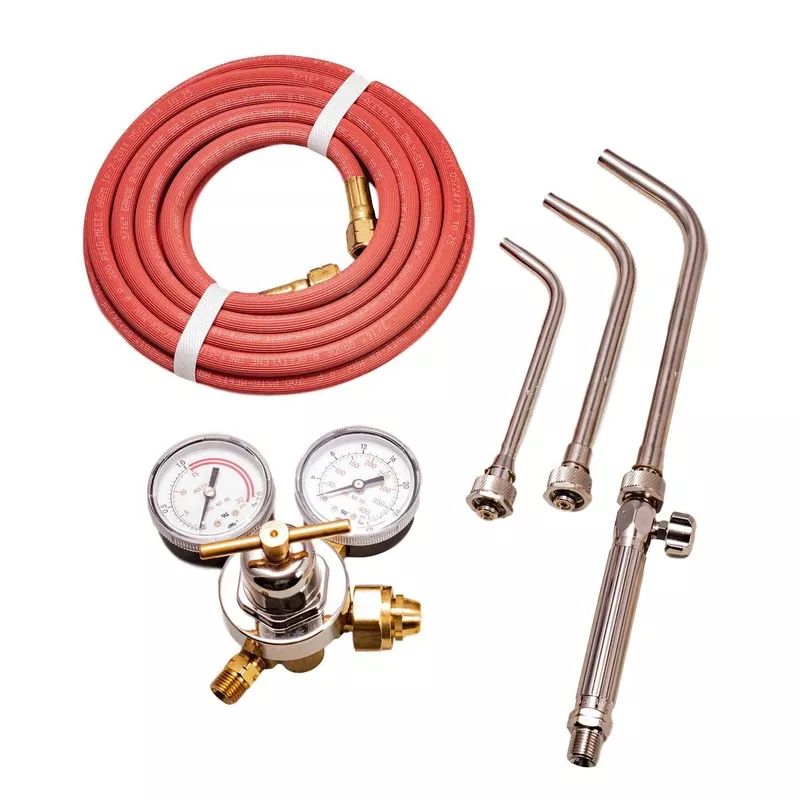

What’s Included
| Part | Item | Notes |
|---|---|---|
| 114.405 | Smith Silversmith Torch Handle (NE-180A) | Machined solid brass; slip-in tip system |
| 114.406 | 12 ft Twin Hose (RL121) | USA standard B connections |
| 114.409 | Tip Size 1 Small | Slip-in; nickel-plated |
| 114.410 | Tip Size 2 Medium | Slip-in; nickel-plated |
| 114.411 | Tip Size 3 Large | Slip-in; nickel-plated |
| 114.036 | B Tank Acetylene Regulator | Single-stage; steady, sensitive regulation |
Notes
- B acetylene cylinder is not included with this kit.
- No oxygen cylinder, check valves, or flashback arrestors are required for this atmospheric-air torch system.
- Optional tips available separately: 00 Super Fine (114.407) for delicate bench work and 4 Giant (114.412) for larger melts and heat tasks.
- This product is subject to California Proposition 65 warnings.
