| Model: |

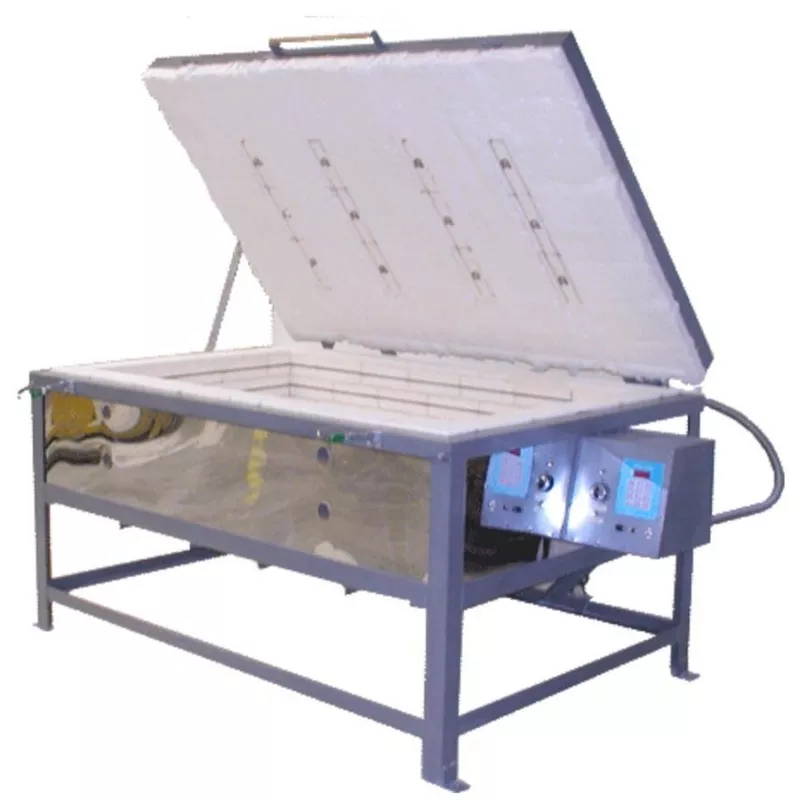

Olympic Kiln – GF15E Top Load (CS or TLC Options) |
| Inside Dim: | 60″(width) x 36″ (depth) x 12″ (height)- 15 Cubic Feet |
| Outside Dim: | 80″(width) x 63″ (depth) x 56″ (height) |
| Shelf Size: | 36″ x 48″ Ceramic Fiberboard Shelf – NOT INCLUDED |
| Brick Thickness: | 4.5 + 1″ Fiber |
| Max Temp: | 1700F |
| Voltage: | 240volts |
| Amperage: | 70 amps (Single Phase) / 46 amps (3 Phase) |
| Watts: | 16,800 watts |
| Receptacle: | Direct Wired |
| Ship Wt: | 1,540(Freight) |
| MODEL | PHASE | AMPS | BREAKER SIZE | NEMA PLUG |
| GF15E 240V | 1 | 70 | 90 | DIRECT |
| GF15E 208V | 1 | 80 | 100 | DIRECT |
| GF15E 240V | 3 | 46 | 60 | DIRECT |
| GF15E 208V | 3 | 53 | 70 | DIRECT |
