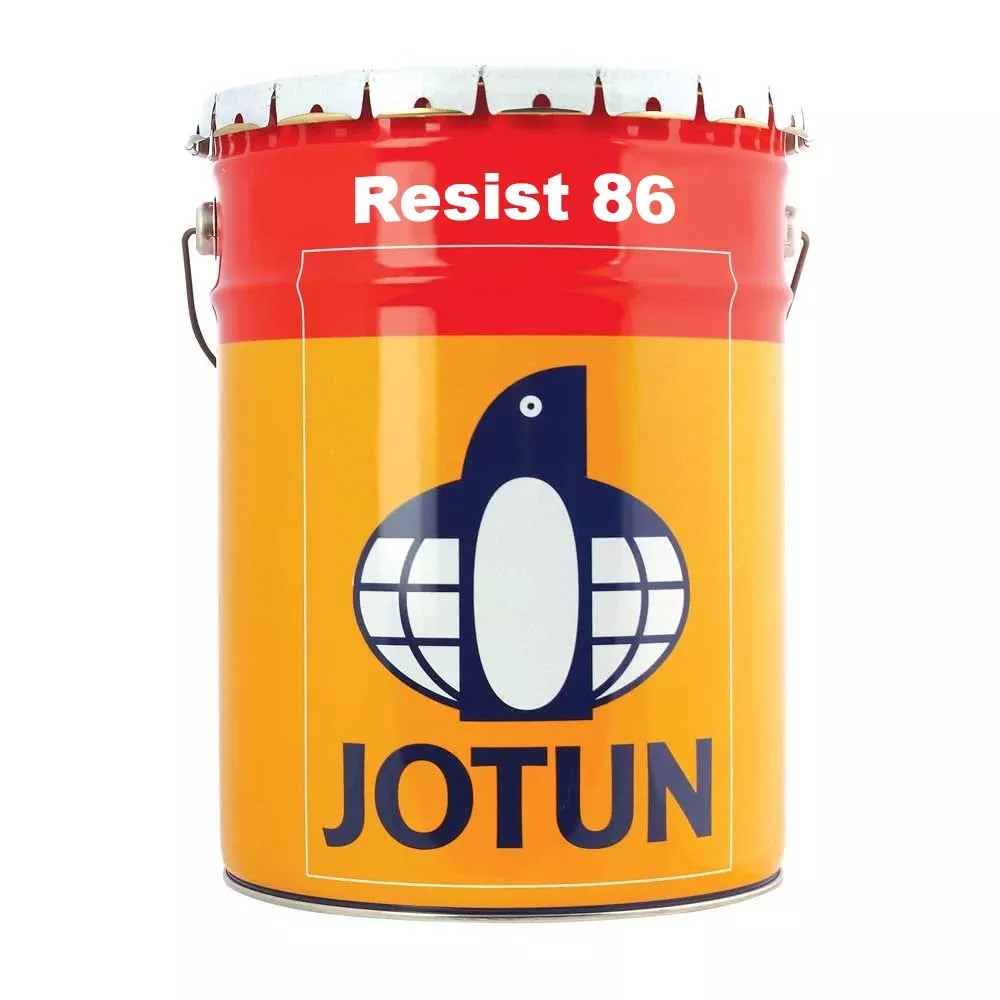

This is a two component moisture curing inorganic zinc ethyl silicate coating. It is a fast curing, very high zincdust containing product. It conforms to the compositional requirements of SSPC paint 20, level 1, ISO 12944-5and AS/NZS 3750.15 1994. It provides excellent corrosion protection as a single coat or as part of a completecoating system. It is heat resistant up to 1004 F (540 C). To be used as primer in a coating system and assingle coat system in atmospheric environments. Suitable for properly prepared carbon steel substrates only.This product complies with ASTM D520 type II zinc dust.
Where to use
Protective:
Suitable for structural steel and piping to be exposed to highly corrosive environments, C5I or C5M (ISO12944-2). Recommended for offshore environments, refineries, power plants, bridges, buildings, miningequipment and general structural steel. Specially designed as a primer for coating systems where extendeddurability is required.
Approvals
Pre-qualification testing in accordance with NORSOK M-501, Rev. 5, System 1, suitable for exterior exposure inoffshore environment, below 250F (120 C).Suitable for use in mating surfaces of High Strength Friction Grip Bolted Connections:Complies with the requirements of Research Council on Structural Connections (RCSC) Class B, Appendix A (Slipcoefficient and resistance to tension creep).
Colors
Greenish grey, grey
Application
| Spray | Use air spray or airless spray. |
| Brush | Recommended for stripe coating and small areas. Care must be taken to achieve thespecified dry film thickness. In order to avoid settling of heavy zinc, continuous mechanical stirring during application is recommended. |
