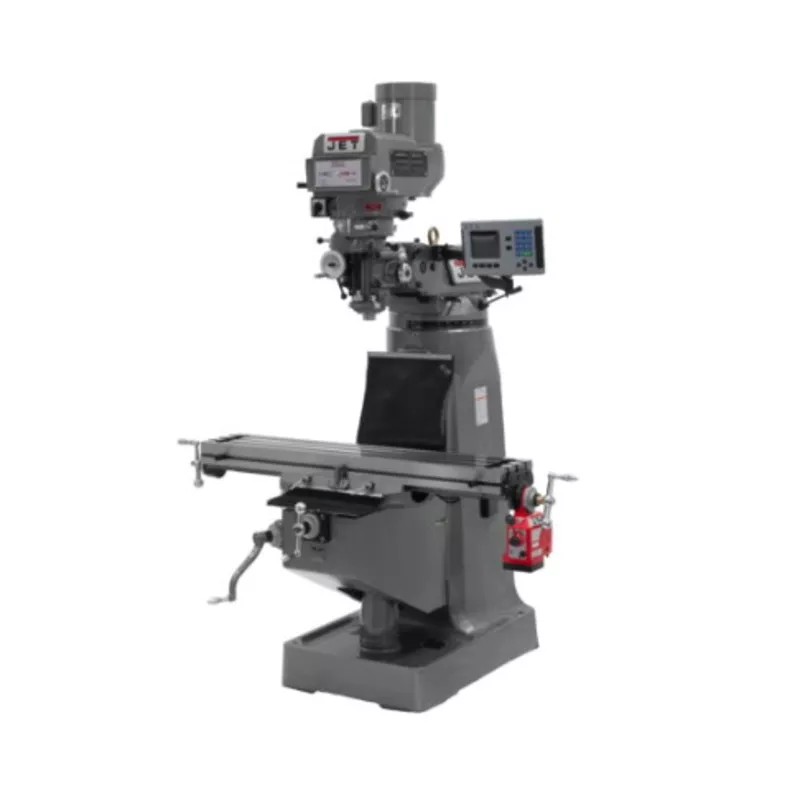

Jet 690178 JTM-4VS-1 Milling Machine X-TPFA
Constructed using the Meehanite casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading two year full service and parts warranty.
Features:
- Meehanite Castings
- High precison Class 7 spindle bearings
- Heavy-duty splined motor drive
- Three-stage power downfeed with automatic stop
- Precison bored and honed milling head
- Large diameter quill is chromed
- Spindle head is internally cooled
- One-piece quill pinion and shaft
- Heavy-duty spindle brake
- Adjustable gibs throughout
- Chrome plated motor shaft with lower bearing support
- Standard Equipment:
- One-shot lubrication system
- Way Covers
- Draw bar
- Tool box with tools
Specifications:
- Spindle Taper (In. x TPI) R-8
- Powerfeed X-Axis
- Table Size (L x W) (In.) 9 x 49
- Quill Diameter (In.) 3-3/8
- Number of Spindle Speeds Variable
- Range of Spindle Speeds (RPM) 60 – 4,200
- Quill Down Feed Rates (IPR) .0015 – .003 – .006
- Spindle Travel (In.) 5
- Head Movement (Deg.) 90 R & L, 45 F & B
- Max Distance Spindle to Table (In.) 17-1/2
- Distance Spindle to Column (Max.) (In.) 19
- Distance Spindle to Column (Min.) (In.) 4-1/2
- Collet Capacity 1/8 – 7/8
- Table Longitudinal Travel (In.) 34
- Table Cross Travel (In.) 12
- T-Slots Number and Size (In.) 3 – 5/8
- T-Slot Centers (In.) 2-1/2
- Work Table Weight Capacity (Lbs.) 660
- Travel of Knee (In.) 14-1/2
- Travel of Ram (In.) 13-3/8
- Motor (HP) 2 HP, 115/230V, 1Ph
- Prewired (V.) 230
- Overall Dimensions (L x W x H) (In.) 66 x 63 x 85
- Weight (Lbs.) 2,420
Red Assurance 2-year Warranty:
JET Tools warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET or Wilton tools.
