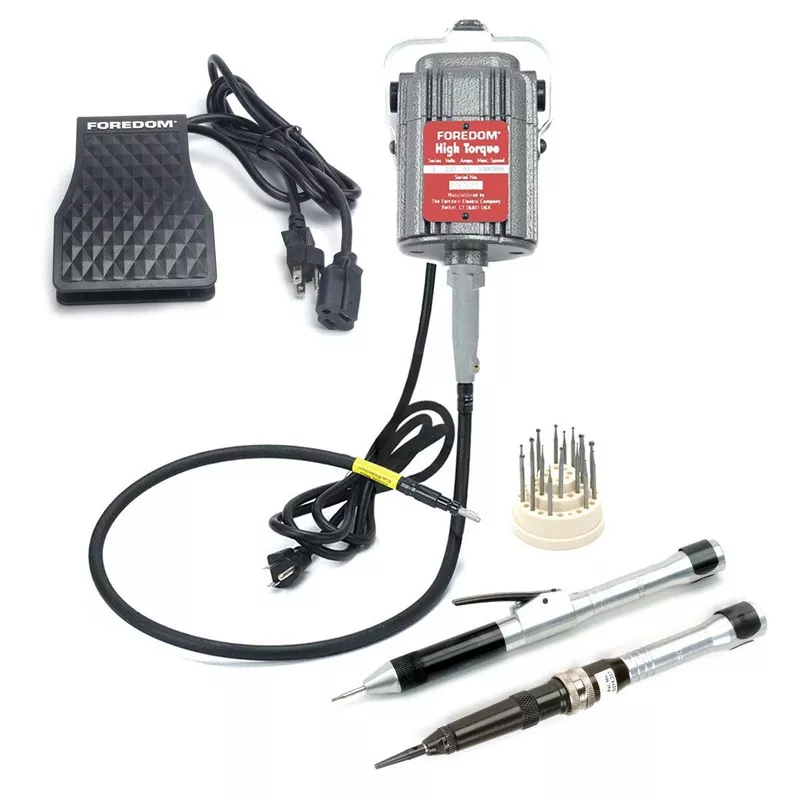

Foredom K.2245 230V export stone-setting flex shaft kit for 220240 V regions, combining a high-torque M.LX 230V motor, matched C.TXR-2 230V foot control, two handpieces, and a burs/drills kit. At the bench it feels tuned for slow, controlled cutting where each tap of the hammer and each bur mark is deliberate.
Features
- High-torque, low-speed M.LX 230V flex shaft motor built specifically for stone setting and low-RPM drilling
- Permanent magnet design delivers strong torque at low speed so the motor doesnt bog down under load
- Includes both a quick change H.18 handpiece for 3/32″ shank tools and an H.15 hammer handpiece for setting work
- C.TXR-2 230V electronic foot control provides smooth, precise speed adjustment matched to LX-series motors
- AK90 13-piece accessory kit supplies an assortment of ball burs and twist drills on 3/32″ shanks
- Ideal for traditional stone setting tasks that should run below typical flex shaft speeds, often under 3,000 RPM
- Kit layout lets you move between drilling, cutting, and hammer setting with one coordinated 230V system
Specifications
| Property | Value |
|---|---|
| Kit Model | K.2245 Deluxe Stone Setting Kit (230V) |
| Motor Series | M.LX high-torque, low-speed flex shaft motor |
| Motor Power | 1/10 HP |
| Maximum Speed | Up to 5,000 RPM |
| Motor Type | Permanent magnet, ball bearing construction |
| Torque Profile | High torque at low speeds for stone setting and controlled drilling |
| Voltage | 230 V AC export version for regions with 220240 V mains supply |
| Speed Control | C.TXR-2 230V electronic foot-operated variable speed control |
| Main Handpiece | H.18 quick change handpiece for 3/32″ (2.35 mm) shank accessories |
| Hammer Handpiece | H.15 hammer handpiece with anvil point, carbide stylus, and pave point |
| Accessory Kit | AK90 13-piece burs & drills kit (3/32″ shanks) with plastic bur holder |
| Recommended Uses | Stone setting, low-speed drilling, hammer setting, and controlled rotary work |
| Brand | Foredom |
What’s Included
| Part | Item | Description |
|---|---|---|
| 134.159-230V | M.LX 230V motor assembly | High-torque, low-speed 1/10 HP permanent magnet flex shaft motor with shaft and sheath, 230V export version |
| 134.192-230V | C.TXR-2 foot control | Electronic variable-speed 230V foot control in plastic housing, matched to LX-series motors |
| 134.228 | H.18 quick change handpiece | Quick change handpiece for 3/32″ (2.35 mm) shank burs and accessories |
| 134.231 | H.15 hammer handpiece | Hammer handpiece supplied with anvil point, carbide stylus, and pave point |
| 134.090 | AK90 accessory kit | 13-piece assortment of Tungsten Vanadium ball burs and twist drills on 3/32″ shanks with plastic bur holder |
Compatibility
- M.LX 230V motor must be used only with its dedicated controls: C.TXR-2 230V (plastic housing), C.SXR-2 230V (cast iron housing), or EMX 230V bench-mounted dial control.
- Designed for 230 V AC systems in regions where 220240 V is standard; match the kit voltage to your mains supply.
- Not intended for use with standard SR-series controls or other brand speed controls.
- H.18 handpiece accepts 3/32″ shank burs and drills; H.15 hammer handpiece should be run at low speeds, typically under 3,000 RPM.
Notes
- 230V export kit: rated for 230 V AC mains in regions with 220240 V supply. Supplied with a North American 3-prong pluguse a plug adapter that matches your local outlet. Do not use on 100127 V circuits.
- The LX motor requires its own special control; using non-LX/TX series controls or controls from other manufacturers may damage the motor.
- For hammer setting, start at very low speeds and increase gradually until you find a controlled striking rate that suits your work.
- Inspect and maintain the flex shaft and handpieces regularly for the smoothest running and longest service life.
