Give Your Integra a Sound That Matches Its Attitude

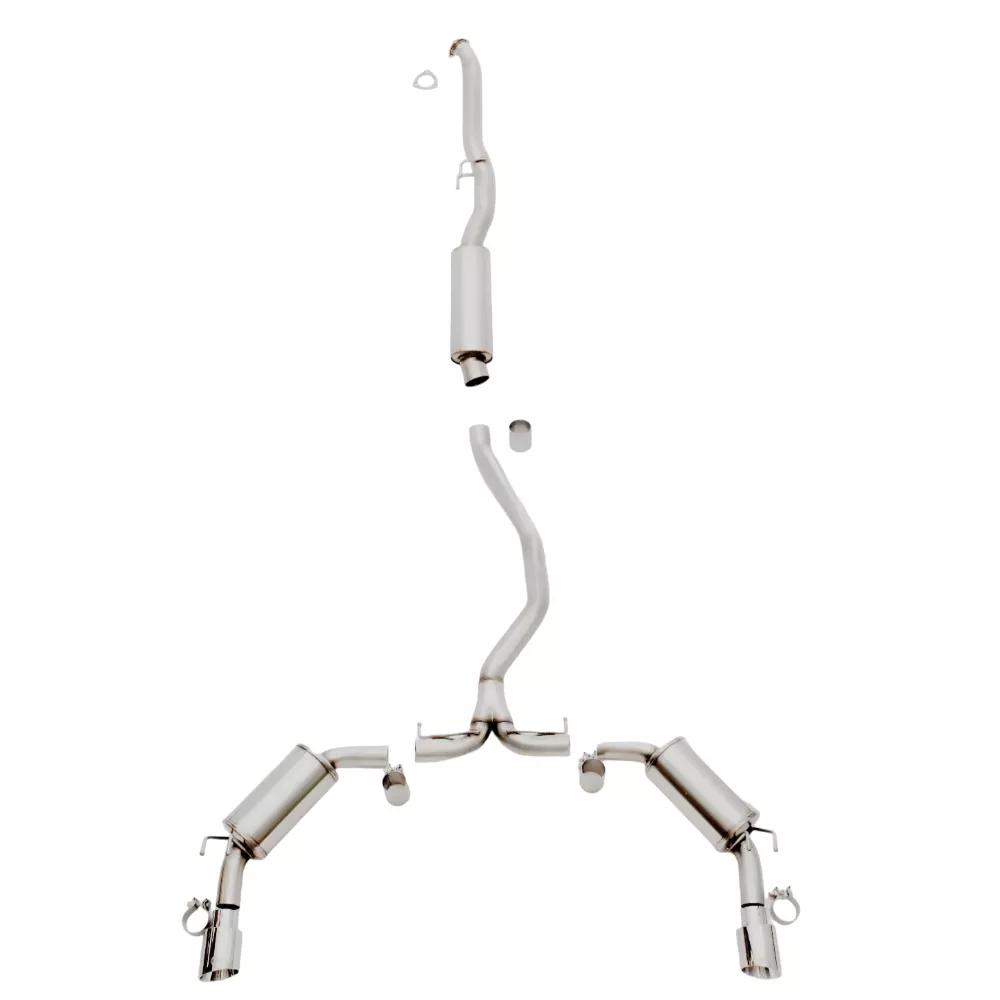

The Thermal R&D B192-C192 front pipe back exhaust system is purpose built for the 2023 and newer Acura Integra, replacing the factory setup with 3 inch mandrel bent T304 stainless steel tubing and internally chambered True Helmholtz Technology. Compression clamp construction keeps installation straightforward while allowing maximum adjustability when positioning the polished exhaust tips.
Key Features
- Full front pipe back exhaust system for the 2023+ Acura Integra, part number B192-C192
- 3 inch mandrel bent T304 stainless steel tubing throughout
- True Helmholtz Technology chambers built internally to reduce weight and eliminate drone
- High end compression clamps allow maximum tip adjustability during install
- Full polished stainless exhaust tips included with the B192-C192 configuration
- Straight through design increases flow while preserving a refined highway cruise
Fitment Table
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2023-2025 | Acura | Integra | Base |
| 2023-2025 | Acura | Integra | A-Spec |
Specifications
| Detail | Value |
|---|---|
| Part Number | B192-C192 |
| Material | T304 Stainless Steel |
| Pipe Diameter | 3 inch mandrel bent |
| Tip Finish | Full Polished |
| System Type | Front Pipe Back Exhaust |
| Clamp Style | High End Compression Clamps |
| Warranty | Lifetime Manufacturer Warranty |
What’s Included
- B192-C192 front pipe back exhaust system
- Polished stainless steel exhaust tips
- Compression clamps and mounting hardware
- Installation instructions
About Thermal R&D
Thermal R&D has been engineering exhaust systems for subcompact and performance cars since the early 1990s. The brand pairs premium T304 stainless steel construction with proprietary Helmholtz chamber technology to deliver a refined, drone free exhaust note, and every system is backed by a lifetime manufacturer warranty.
FAQ
What is the B192-C192?
The B192-C192 is a front pipe back exhaust system from Thermal R&D built specifically for the 2023 and newer Acura Integra, featuring polished exhaust tips.
Does the B192-C192 replace the entire exhaust system?
Yes, the B192-C192 is a front pipe back system, meaning it replaces the factory piping from the front pipe all the way through the muffler and tips.
Will the B192-C192 trigger a check engine light?
No, the B192-C192 connects behind the factory catalytic converter and does not affect emissions sensors or trigger fault codes.
Does the B192-C192 come with a warranty?
Yes, the B192-C192 is backed by the Thermal R&D Lifetime Manufacturer Warranty.
Is the B192-C192 louder than the factory Integra exhaust?
Yes, the B192-C192 delivers a noticeably deeper and more aggressive tone than the factory system while using Helmholtz chambers to prevent highway drone.
Can I install the B192-C192 without professional help?
Yes, the compression clamp design of the B192-C192 makes it possible for most owners to install using basic hand tools and a jack or lift.
Does the B192-C192 fit both manual and CVT Integra models?
Yes, the B192-C192 fits 2023 and newer Acura Integra models regardless of transmission type.
Are the tips on the B192-C192 adjustable after installation?
Yes, the high end compression clamps used on the B192-C192 allow the tips to be repositioned for ideal alignment with the rear bumper.
Install Instructions
- Raise the vehicle safely and allow the factory exhaust system to cool completely.
- Remove the factory front pipe back exhaust assembly, starting at the catalytic converter connection.
- Position the new B192-C192 front pipe section and secure it to the factory catalytic converter outlet.
- Install the mid pipe and muffler sections using the provided compression clamps, leaving them hand tight.
- Mount the assembly to the factory hangers and align the polished tips evenly with the rear bumper cutouts.
- Tighten all compression clamps fully and verify clearance from the fuel tank and underbody components.
- Start the vehicle and check every connection point for exhaust leaks before lowering it from the lift.
