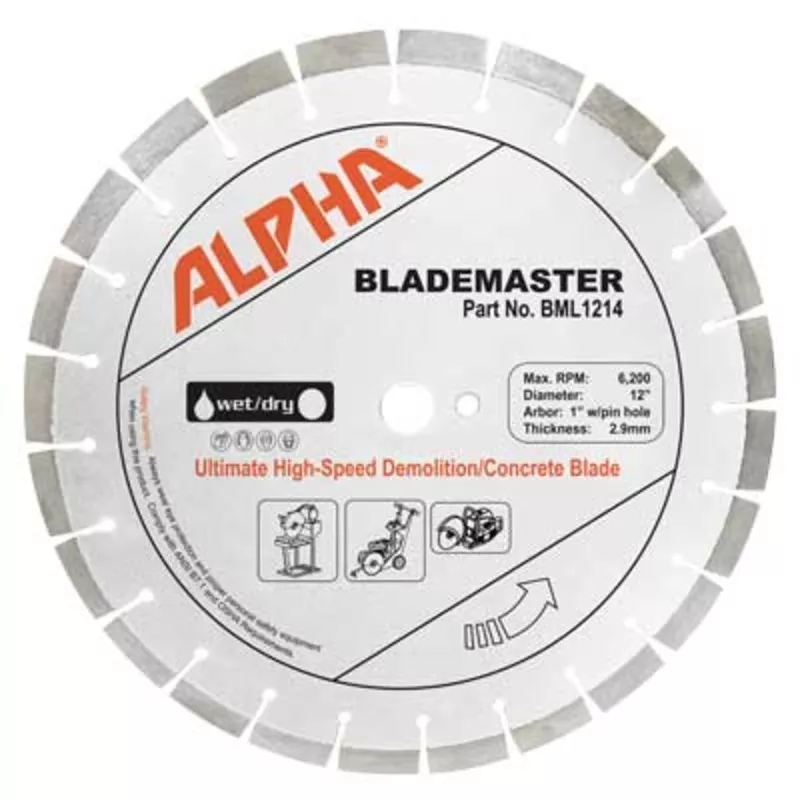

Alpha BladeMaster High-Speed Diamond Blade for Demolition & Concrete
The Alpha BladeMaster is the ultimate laser-welded segmented diamond blade engineered for cured concrete with industry-leading cost/performance. A 14mm segment height combined with multi-layer arranged diamond technology delivers very fast cutting speed and long life on popular high-speed demolition saws. Operates wet or dry on saws from 5 to 25HP and cuts a diverse range of construction materials.
Features
- High-quality laser-welded segmented diamond blade
- 14 mm segment height for long service life
- Built for high-speed demolition saws, masonry saws and road cutters
- Wet or dry capable on 525 HP saw motors
- Available in 12″ and 16″ diameters with 1″ arbor + drive pin hole
- Optimised for cured concrete; usable on a wide range of construction materials
Models / Part Numbers
| Part No. | Size | Thickness | Max RPM | Arbor | Recommended For | UPC |
|---|---|---|---|---|---|---|
| BML1214 | 12″ | 2.9 mm (0.114″) | 6,200 | 1″ w/ pin hole | Cured Concrete | 749173461668 |
| BML1614 | 16″ | 3.1 mm (0.122″) | 4,700 | 1″ w/ pin hole | Cured Concrete | 749173461682 |
How to Use
- Confirm saw RPM is at or below the blades Max RPM (6,200 RPM for 12″, 4,700 RPM for 16″).
- Mount blade on a 1″ arbor saw aligning the drive pin into the pin hole.
- Use water-fed when feasible to maximise life and suppress dust; dry cutting is permitted for short demolition cuts.
- Allow the blade to do the worknever force-feed. Let RPM recover between deep passes.
- Periodically dress in an abrasive block if glazing occurs.
Specifications by Variant
12″ BML1214
| Part No. | BML1214 |
| UPC | 749173461668 |
| Size | 12″ |
| Max RPM | 6,200 |
| Recommended For | Cured Concrete |
| Packaged Weight | 2.50 lbs |
| Package Dimensions | 12″ x 12″ x 0.5″ |
| Commodity Code | 8202.91.0000 |
| Country of Origin | Korea |
16″ BML1614
| Part No. | BML1614 |
| UPC | 749173461682 |
| Size | 16″ |
| Max RPM | 4,700 |
| Recommended For | Cured Concrete |
| Packaged Weight | 6.00 lbs |
| Package Dimensions | 16.5″ x 16.5″ x 0.5″ |
| Commodity Code | 8202.91.0000 |
| Country of Origin | Korea |
Common Specifications
| Property | Detail |
|---|---|
| Blade Type | Laser-welded segmented diamond |
| Segment Height | 14 mm |
| Arbor | 1″ with drive pin hole |
| Application | Wet or dry |
| Saw Motor Range | 5 25 HP |
| Primary Material | Cured concrete |
Related & Companion Products
- Alpha MasonMaster Concrete Blade
- Alpha Hot-Rod
- Alpha Rescue Blade
FAQs
No frequently-asked questions are currently published for this product. Contact us at e-commerce@.
Videos
No product-specific videos are currently available from the manufacturer or DST.
Documentation
- SDSDiamond Metal Bonded Blades, Grinding Wheels & Core Bits
- BladeMaster Demolition Blade flyer
- Hardscape Blade Chart
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov. Always wear appropriate PPE.
